Current Position: Home --> Products --> Power Capacitor
DKMJ type DC filter capacitor/DC support capacitor

Electrical Parameters:

1.Rated voltage (Un): 800Vd.c.~1800Vd.c.

2.Rated capacity(Cn):100μF~1000μF

3.Capacitance allowable deviation : ±5%、±10%

4.Long-term working current effective value(lrms) : 50A~200A

5.Capacitor self-induction(Le) : <50nH

6.Equivalent series resistance(Rs) : <1.0mΩ

7.Loss tangent value : tgδ≤30×10ˉ4(100Hz)

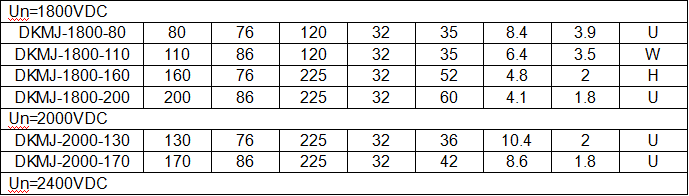

The main specifications:


Note: Other special specification products can supply according to your requirements.
