Current Position: Home --> Products --> Motor Capacitor
CBB65



Product description:

Selects the high quality electrician grade polypropylene film as the dielectric, thicken composite type metallized as the electrode, metal shell, vacuum oiling, 250# quick connect terminal leads,P2 level pressure type explosion-proof structure.

This series of products heat dissipation fast, corrosion resistant, safe and reliable, etc. It is mainly suitable for AC motor starting, running and energy storage which have high requirements for safety, filter and other occasions.



Parameters:

1.Executing standards: GB/T3667, UL810 , EN60252

2.Climate type: 25/70/21、25/85/21、40/70/21、40/85/21

3.The rated voltage: 150VAC~600VAC (50/60Hz)

4.Capacity range: 3μF~100μF

5.Capacitance tolerance: ±5%(J)、±10%(K)、±105%(U)

6.Testing voltage:  Ut-t   2*UN(VAC)/60s

Ut-c   2*UN+1000(VAC)/60s(≥2000VAC)

7.Insulation resistance(20℃):Ut-t  ≥2000MΩ.μF(500Vdc,60s)

8.Loss angle tangent(20℃):≤0.002(100Hz)

9.Protection level: P2

10.Fault current: 10,000AFC (UL810)

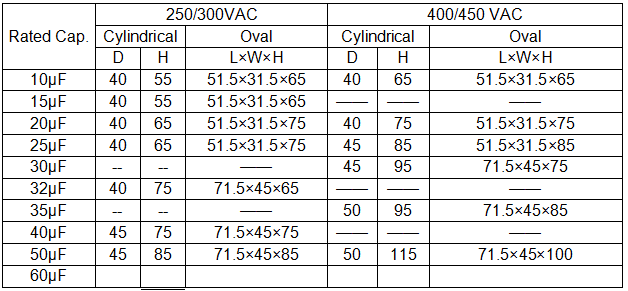

Commonly used specifications(Unit:mm)
