Current Position: Home --> Products --> Motor Capacitor
CBB61 Terminal Series

Product description:

Adopt electrician grade polypropylene film as the dielectric, zinc aluminum metalized layer as electrode, high quality engineering plastics shell, sealing with frame retardant epoxy resin, standard type quick connect terminal lead, can realized quick connect.



Parameters:

1.Certification marks: UL﹑VDE﹑CQC﹑TUV

2.Executing standards: GB/T3667.1、UL810、EN60252-1

3.Environment temperature: -40℃~+105℃

4.The rated voltage: 110VAC~600VAC (50/60Hz)

5.Capacity range: 0.1μF~80μF

6.Capacitance tolerance: ±5%(J)、±10%(K)

7.Loss angle tangent: (20℃):≤0.002 (100Hz )

8.Testing voltage:  Ut-t  2*UN (VAC)/60s(CQC、VDE、TUV),1.5*UN  (VAC)/60s (UL)

Ut-c   2*UN+1000(VAC)/ 60s(≥2000VAC)

9.Protection level: CBB61:P0 class ; CBB61-P2:P2 class

10.Fault current: CBB61-P2 : 10,000AFC ( UL 810)

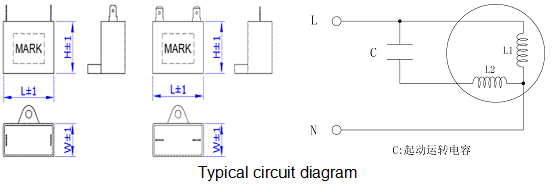

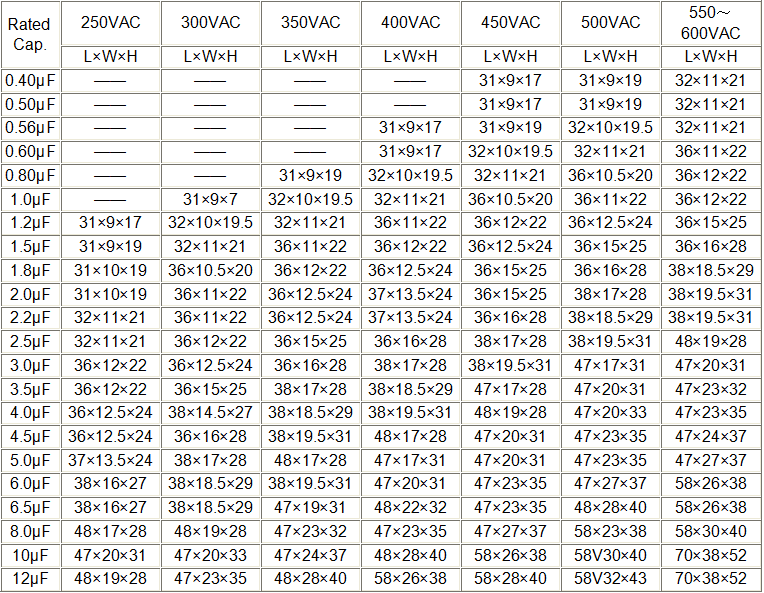

Commonly used specifications(Unit:mm)
