Current Position: Home --> Products --> Motor Capacitor
CBB61 Speed Regulation Series



Product description:

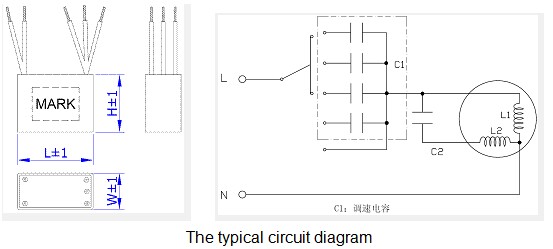

Specially designed for fan speed controller, multi-core combination can realize 2-4pcs cores module encapsulation. A variety of optional personalized installation structure, it is easy to use and adopt special manufacturing process, electrical performance is stability.

It can solve many shortcoming of traditional inductive type speed controller, such as cost high and big noise.

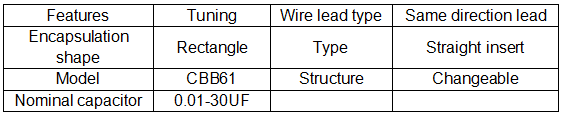

Parameters:

1.Certification marks: UL﹑VDE﹑CQC﹑TUV

2.Executing standards: GB/T3667.1 , UL810 , EN60252-1

3.Environment temperature: -40℃~+105℃

4.The rated voltage: 110VAC~600VAC (50/60Hz)

5.Capacity range: 0.1μF~80μF

6.Capacitance tolerance: ±5%(J)、±10%(K)

7.Loss angle tangent(20℃):≤0.002 (100Hz )

8.Testing voltage:  Ut-t  2*UN (VAC)/60s(CQC、VDE、TUV),1.5*UN  (VAC)/60s (UL)

Ut-c  2*UN+1000(VAC)/ 60s(≥2000VAC)

9.Protection levelCBB61:P0 class ;CBB61-P2:P2class

10.Fault current: CBB61-P2:10,000AFC ( UL 810)

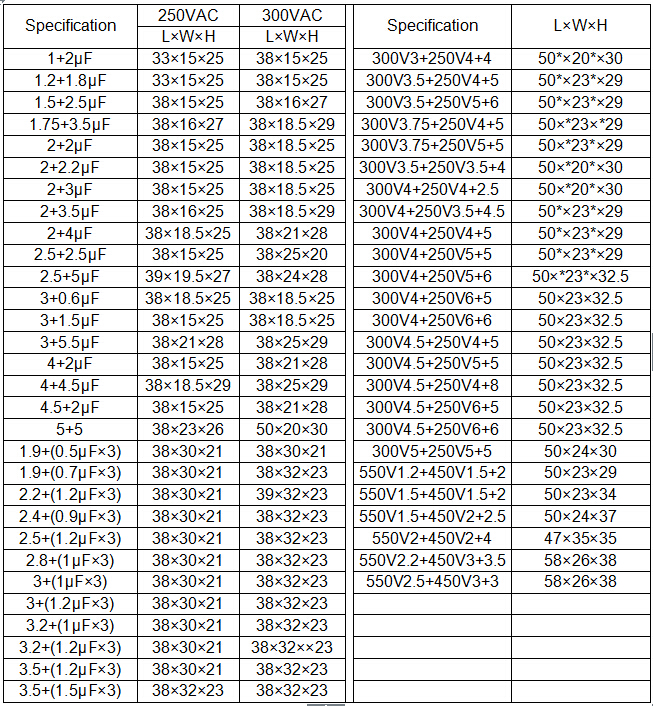

Commonly used specification(Unit:mm)
