Current Position: Home --> Products --> Motor Capacitor
CBB61 Soldering Terminal Series



Products description:

Select electrician grade polypropylene film as the dielectric, zinc aluminum metallized layer as the electrode, high quality engineering plastics shell, flame retardant epoxy resin sealing and soldering terminal leads.

The product has small volume and high performance-price ratio.




Parameters:

1.Certification marks: UL﹑VDE﹑CQC﹑TUV

2.Executing standards: GB/T3667.1、UL810 、EN60252-1

3.Environment temperature: -40℃~+105℃

4.The rated voltage: 110VAC~600VAC (50/60Hz)

5.Capacity range: 0.1μF~80μF

6.Capacitance tolerance: ±5%(J)、±10%(K)

7.Loss angle tangent: (20℃):≤0.002 (100Hz )

8.Testing voltage: Ut-t  2*UN (VAC)/60s(CQC、VDE、TUV),1.5*UN (VAC)/60s     (UL)

Ut-c   2*UN+1000(VAC)/ 60s(≥2000VAC)

9.Protection level: CBB61:P0 class ; CBB61-P2:P2 class

10.Fault current: CBB61-P2 : 10,000AFC ( UL 810)

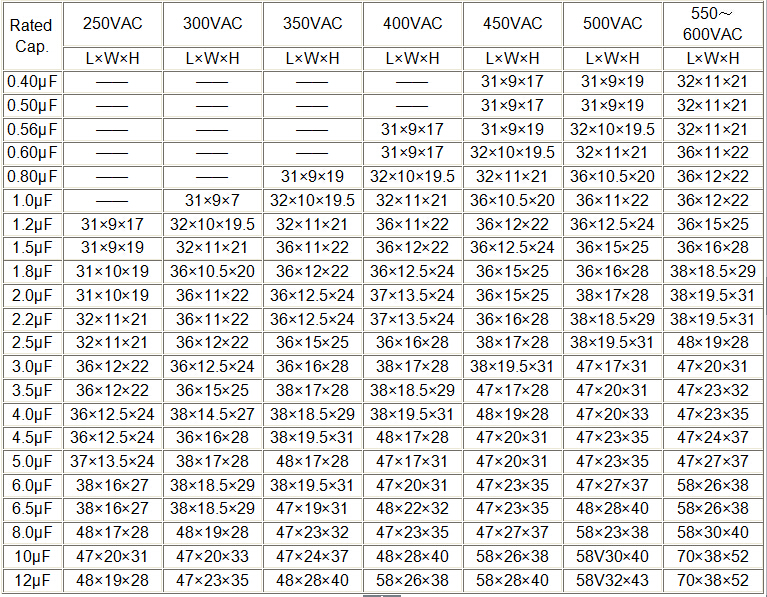

Commonly used specifications(Unit:mm)
