Current Position: Home --> Products --> Motor Capacitor

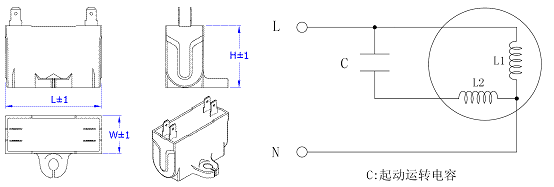

CBB61 Silence Series

Product description:

The silence type capacitor is elaborate designed and manufacture special for first-line brand air conditioning. Adopt high temperature resistant type polypropylene film as the dielectric, using high sheet resistance metallized electrode and 94V0 level flame retardant plastic shell and sealing with epoxy resin, adopt special silence treatment process, omni-directional enhancement type circular arc transition, open type oval adjustable mounting hole, to make the product has features of low noise, long life, installation and positioning efficient.





Parameters:

1.Certification marks:UL﹑VDE﹑CQC

2.Executing standards: GB/T3667 、 UL810 、EN60252

3.Climate type: 25/70/21、25/85/21、40/70/21、40/85/21

4.Rated voltage: 450VAC(50/60Hz)

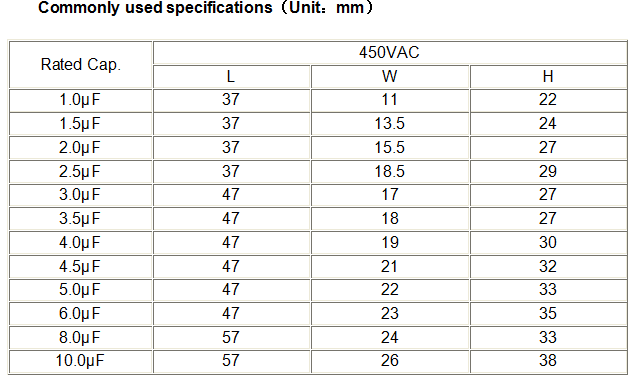

5.Capacity range: 1μF~10μF

6.Capacitance tolerance:±5%(J)、±10%(K)、±105%(U)

7.Testing voltage:  Ut-t  2*UN (VAC)/60s

Ut-c  2*UN+1000(VAC)/ 60s (≥2000VAC)

8.Insulation resistance(20℃): Ut-t  ≥2000MΩ (500VDC,60s)

9.Loss angle tangent(20℃):≤0.002 (100Hz )
