Current Position: Home --> Products --> Motor Capacitor
CBB61 Pin Series


Product description:


Adopt electrician grade polypropylene film as the dielectric, thicken type metalized electrode, 94V0 grade flame retardant plastic shell, epoxy resin encapsulation, tinned copper wire lead.

Realizing full automatic production, have many characteristics such as good consistency, high performance stability etc.

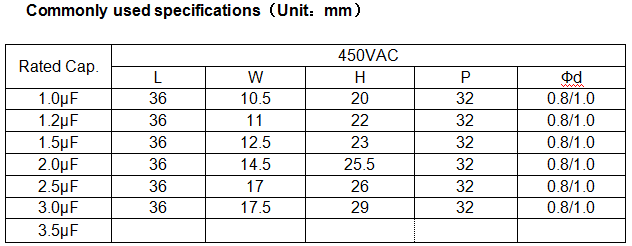

Parameters:

1. Certification marks: ULVDECQC

2. Executing standards: GB/T3667 UL810 EN60252

3. Climate type: 25/70/2125/85/2140/70/2140/85/21

4. The rated voltage: 450VAC(50/60Hz)

5. Capacity range: 1μF3.5μF

6. Capacitance tolerance: ±5%(J)±10%(K)±105%(U)

7.  Testing voltage:    Ut-t 2*UN (VAC)/60s

Ut-c 2*UN+1000VAC/ 60s(≥2000VAC)

8. Insulation resistance(20)Ut-c ≥2000MΩ (500VDC,60s)

9. Loss angle tangent(20)≤0.002 (100Hz )
